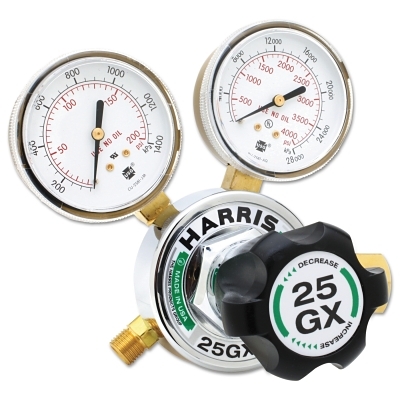

25GX Single-Stage Medium/Heavy-Duty HVAC Purging Regulator, 580, Argon, Helium, Nitrogen

Harris Product Group 25GX Single-Stage Medium/Heavy-Duty HVAC Purging Regulators

Description

  • High-end features for economical price
  • Designed for HVAC and other nitrogen pressure testing and blanketing applications
  • Easy-to-operate brass T screw
  • Brass body and chrome-plated zinc bonnet for longer service life
  • Neoprene diaphragm for better pressure control

Specification

Body Material

Brass

Capacities

Medium to Heavy

Depth [Nom]

4.99 in

Diaphragm Material

Neoprene

Inlet Pressure [Max]

3000

Length [Nom]

4.99 in

Gas Type

Argon; Helium; Nitrogen

Gauge Size

2-1/2 in (steel)

Inlet Connection

CGA 580

Width [Nom]

7.20 in

Series

25GX

Type

Regulator

Wt.

2.9 lb

Brand
