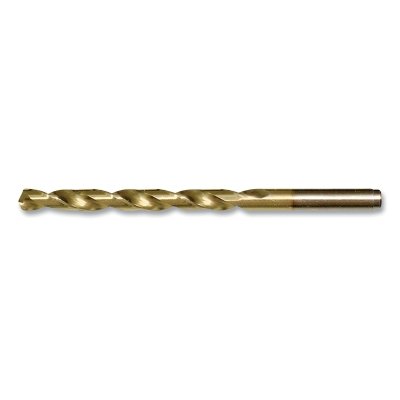

550ASP-TN Heavy-Duty Cobalt TiN Jobber-Length Drill Bit, 0.1299 in dia Cutting, 2.5591 in OAL, 3.30 mm

Chicago-Latrobe® 550ASP-TN Heavy-Duty Cobalt TiN Jobber-Length Drill Bits

Description

  • Heavy-duty construction for drilling in tough, high-tensile, and work-hardening materials
  • Manufactured from cobalt high-speed steel (HSS) for increased abrasion resistance
  • Titanium nitride (TiN) coating adds lubricity and hardness, enhancing chip flow, finish hole quality, and drill life
  • 135° P3 split point is self-centering for reduced thrust and easier penetration
  • Sizes smaller than 0.0625 inch do not have split point

Specification

No. of Flutes

2

Applicable Materials

Alloy Steel; Stainless Steel; Tool Steel

Bit Length

2.5591 in

Cutting Diam [Nom]

0.1299 in

Dia. [Nom]

3.30 mm

Coating

Titanium Nitride (TiN)

Finish

TiN

Flute Length

1.4173 in

Overall Length [Nom]

2.5591 in

Material

HSS-CO 5% (M35)

Point Angle

135° RHS/RHC

Shank Type

Straight

Type

Style 550ASP-TN
