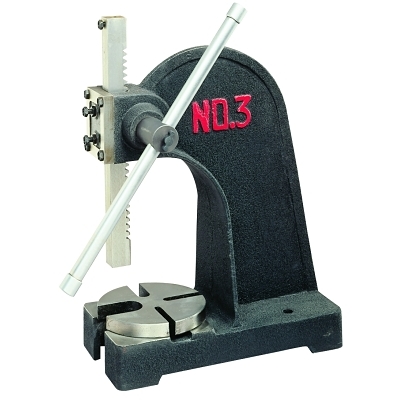

AP-3 3 TON ARBOR PRESS SINGLE LEVERAGE

Jet® Arbor Press

SKU 825-333630
Brand

Description

  • Every JET arbor press is made of a heavy ductile iron casting that offers incredible strength and rigidity to the overall framework
  • The base, ram housing, framework and 4 position bottom plate are precision machined for unquestioned accuracy

Specification

Throat Depth [Nom]

5 3/8 in

Base Length [Nom]

18 in

Base Width [Nom]

8 1/2 in

Capacity Wt. [Max]

3 tons

Opening Height [Max]

11 3/8 in

Overall Height [Nom]

21 1/2 in

Workpiece Diam [Nom]

10 3/4 in

Power Source

Manual-Rack & Pinion

Type

C-Frame Portable

Wt.

97 lb
