EDGE Series 2.0 Regulators, Oxygen, 150 psig, CGA 540, High

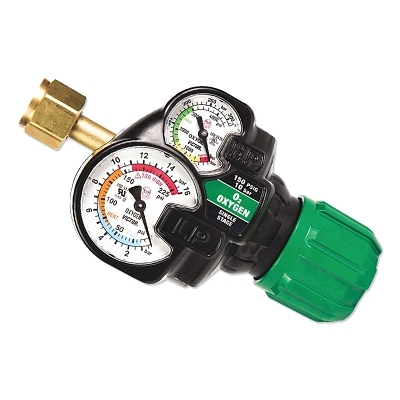

Victor EDGE™ Series 2.0 Regulators

SKU 341-0781-3601
Brand

Description

  • Heavy-duty, high-capacity single stage cylinder regulators feature new and improved gauge designs
  • Larger faced delivery gauge (low pressure) with high contrasted colored face for easy setting
  • Enhanced color-coded knob designs provide more comfortable operations
  • Fully enclosed, highly visible modular gauges for more clarity with robust metal gauge guard
  • Robust seat gives optimum performance

Specification

Depth [Nom]

4 in

Connection Type

9/16 in – 18 M RH (Outlet); CGA 540 (Inlet)

Diaphragm Material

Stainless Steel

Height [Nom]

4 in

Inlet Pressure [Max]

150 psig

Flow Range

5 – 150 psig

Gas Type

Oxygen

Gauge Size

2-1/2 in

Outlet Pressure [Max]

150 psig

Outlet Pressure [Min]

5 psig

Inlet Connection

CGA 540

Width [Nom]

6 in

Outlet Connection

9/16 in – 18 M RH

Packing Type

Pack

Series

EDGE 2.0

Thread - TPI or Pitch

18

Type

Regulator

Used With

Gas Cutting Equipment

Wt.

4 lb
