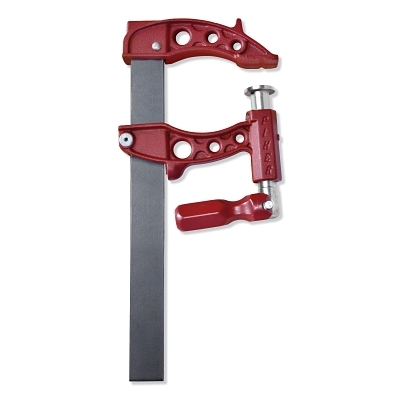

Maxipress F Piston Clamp, 32 in Opening, 5 in Throat Depth, 9,000 N

Piher® Maxipress F Piston Clamps

SKU 848-60080
Brand

Description

  • Rolled spring steel bar provides maximum pressure held throughout the whole job
  • Fixed jaw surface is grooved to achieve maximum grip
  • Spring activated back brake keeps moving jaw firmly in position
  • Covered double-threaded screw doubles both pressure and speed with a greasing hole for optimum lubrication
  • Dismountable, interchangeable easy grip handle

Specification

Throat Depth [Nom]

5 in

Bar Thickness

.3 in

Bar Width

1.4 in

Body Material

Nodular Cast Iron Jaws; Heat-Rolled Steel Bar

Load Cap. [Nom]

9,000 N

Handle type

Dismountable; Interchangeable; Nylon and Fiberglass

Spindle Diam

1.1 in

Wt.

7.6 lb
