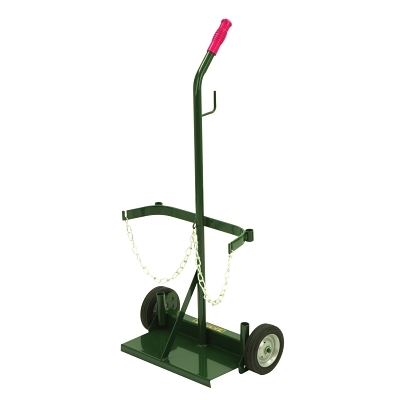

Series 100 Truck, Holds 2 Cylinders, 7-1/2 in to 9-1/4 in dia, 7 in Semi-Pneumatic/Plain Wheels

Harper Trucks Series 100 Trucks

SKU 338-108-24
Brand

Description

  • Strong and compact in design having excellent balance and rollability
  • All models have a cylinder hold chain and hose supports
  • Concealed angle legs prevent load from resting on wheels when truck is stationary
  • Handles small to medium cylinders
  • Recommended for small shops and garages having hard surface floors

Specification

Acetylene Cylinder (Max)

9-1/4 in

Bracket Chain Height

22-3/4 in

Cylinder Diam [Max]

9-1/4 in

Depth [Nom]

8 in

Color

Harper Green

Height [Nom]

45 in

No. of Cylinders

2

No. of Wheels

2

Handle type

Uni-Handle

Wheel Diam [Nom]

7 in

Wheel Width [Nom]

1-1/2 in

Width [Nom]

21-1/2 in

Oxygen Cylinder (Max)

7-1/2 in

Platform Depth

8 in

Platform Width

17 in

Wheel Type

Semi-Pneumatic; Plain

Wt.

21 lb
