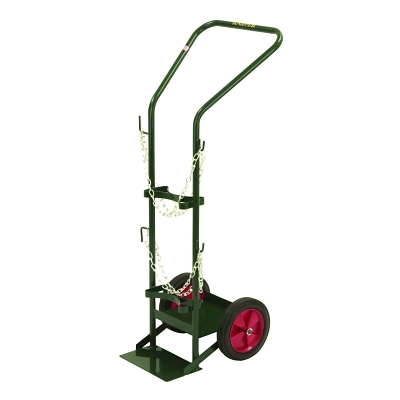

Series 830 Trucks, Holds 10.5″-12.5″ Cylinders, 10 in Pneumatic, B.B. Wheels

Harper Trucks Series 830 Trucks

SKU 338-830-16
Brand

Description

  • Series 830 is a new design to accommodate a large oxygen cylinder in the back, and a large acetylene cylinder in the front
  • This narrow design allows for better maneuverability in narrow aisles where a normal side-by-side cylinder truck cannot go
  • SO-2 bolt on tool box is available as an option

Specification

Acetylene Cylinder (Max)

12 1/2 in

Base Plate

8 x 12 in, in front; 11 x 11 in, in back

Bracket Chain Height

19 in; 34 in

Color

Harper Green

Height [Nom]

49 in

Handle type

Continuous

Wheel Diam [Nom]

10 in

Wheel Width [Nom]

3 1/2 in

Width [Nom]

20 in

Oxygen Cylinder (Max)

10 1/2 in

Wheel Type

Pneumatic, B.B.

Wt.

29 1/2 lb
