Description
- Drop forged are quenched and tempered for optimum strength
- Furnished with Unified National Coarse (U.N.C.) threads
- Special threads and lengths

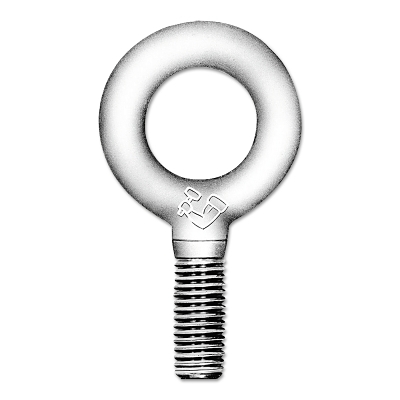

Campbell® Shoulder Pattern Eye Bolts
Eye Inner Diam [Nom] | 1 in |
---|---|
Eye Outer Size | 1 21/32 in |
Load Cap. [Nom] | 1400 lb |
Overall Length [Nom] | 1 1/4 in |
Load (Max) @ Angle | 1,400 lb @ 0 °; 650 lb @ 30 °; 350 lb @ 45 °; 325 lb @ 60 °; 275 lb @ 90 ° |
Material | Forged Carbon Steel |
Quantity | 1 per box |
Thread - TPI or Pitch | 3/8 in – 16 UNC |
Type | Eye Bolt-Shouldered |
Wt. | 0.13 lb |
