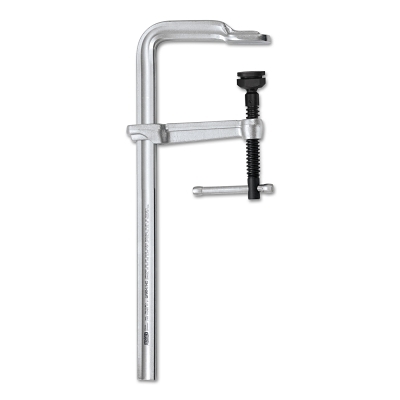

SQ Series Bar Clamp, 8 in, 5-1/2 in Throat, 2660 lb

BESSEY® SQ Series Bar Clamps

SKU 013-SQ-8
Brand

Description

  • Regular-duty, all-steel bar clamp
  • Comes with standard rail profile and standard pad
  • Heat treated, high carbon Acme threaded screw – tempered and quenched to give greater loading capacity and longer service life
  • The high-strength sliding pin T-Handle is sized according to the clamp’s capability

Specification

Throat Depth [Nom]

5-1/2 in

Bar Thickness

19/32 in

Bar Width

1-3/16 in

Body Material

Drop-forged Steel

Capacity [Nom]

8 in

Height [Nom]

1.578 in

Length [Nom]

12.967 in

Load Cap. [Nom]

2660 lb

Handle Material

Tempered Steel

Handle type

Sliding Pin T-Handle

Material

Steel

Width [Nom]

8-1/8 in

Spindle Diam

0.78 in

Style

Heavy-Duty Pad

Wt.

5.5 lb

Body Finish

Satin
