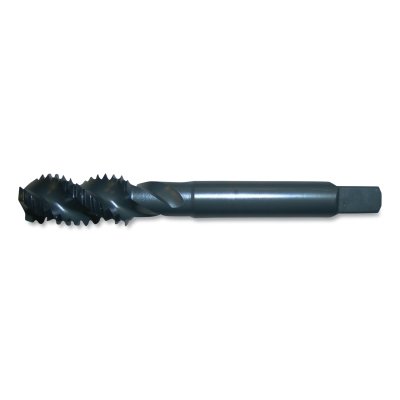

Steam Oxide Plug Spiral Flute Tap, #8-32 Tool Size, UNC

Greenfield Threading Steam Oxide Plug Spiral Flute Taps

Description

  • UN coarse UNC taps have fewer threads per inch than UN fine UNF taps
  • Compared to UNF taps, UNC taps perform better in threading applications on brittle materials and are less likely to cross thread
  • Coarse threads can withstand more physical abuse than fine threads
  • Black-oxide finish on these taps retains lubricants to improve the taps’ wear resistance and chip flow
  • Black-oxide taps should only be used on ferrous metals

Specification

No. of Flutes

3

Applicable Materials

Stainless Steel; Steel

Cutting Direction

Right

End Shape

Square

Length [Nom]

2-1/8 in

Outside Diam [Nom]

0.164 in

Material

High Speed Steel

Thread Pitch [Nom]

32

Thread Size [Nom]

#8

Measuring System

Imperial

Packing Type

Snap Pack

Quantity

1 EA / EA

Shank Size Symbol

Square

Style

SFHD

Tap Size

#8-32

Thread - TPI or Pitch

32

Type

UNC

Brand
