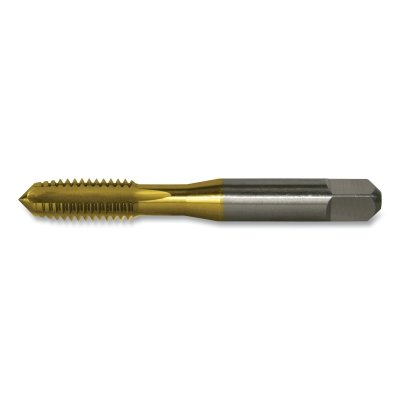

TiN Plug Straight Flute Hand Taps, 3FL, #5-40 Tool Size, UNC

Greenfield Threading TiN Plug Straight Flute Hand Taps

Description

  • Taps with TiN coating protects them from wear and allows them to be used at higher speeds than taps with a bright finish
  • Non-coolant-through taps do not have coolant holes, so a separate hose is required to bring coolant to the cutting area if it is needed
  • Plug tap chamfer

Specification

No. of Flutes

3

Applicable Materials

Cast Iron; Stainless Steel; Steel

Cutting Direction

Right

End Shape

Square

Length [Nom]

1-15/16 in

Outside Diam [Nom]

1/8 in

Material

High Speed Steel

Thread Pitch [Nom]

40

Thread Size [Nom]

#5

Measuring System

Imperial

Packing Type

Snap Pack

Quantity

1 EA /EA

Shank Size Symbol

Square

Style

HTGP-TN

Tap Size

#5-40 UNC

Thread - TPI or Pitch

40

Type

UNC
